X.DA-30

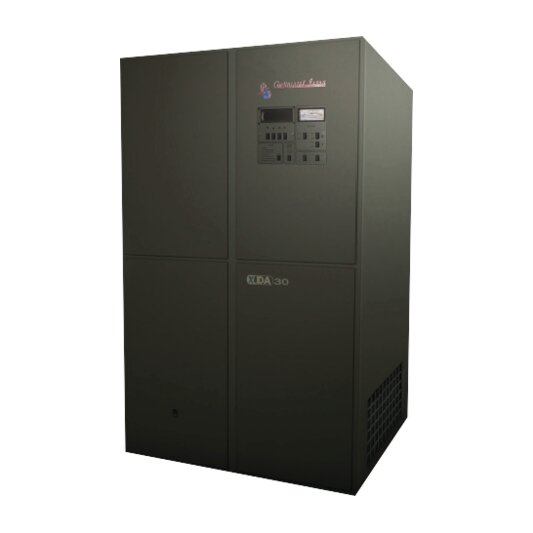

30 kW AM Transmitter30 kW AM transmitter from the X.DA series, designed for broad-coverage broadcasters. Redundant modular architecture in a dual 24" rack cabinet. DDS carrier generation, HD Radio® (IBOC) and DRM compatible. Local and Ethernet remote control. Full digital protections.
The X.DA-30 is a 30 kW solid-state AM transmitter designed for broad-coverage national broadcasters and large-scale broadcasting networks. Its 36 independent 1 kW power stages, housed in dual 24-inch rack cabinets, allow individual module replacement without specialist tools, simplifying maintenance at remote transmitter sites. DDS carrier generation and high-efficiency Class D PWM modulation enable simultaneous broadcast in analog AM and in HD Radio® and DRM digital standards. Built-in Ethernet control and full digital protections — VSWR, overcurrent, overtemperature, overvoltage — are standard.
Technical Specifications
| Carrier power | 30 kW |
| Power reduction | 4 pre-set adjustable levels |
| Frequency range | 535–1705 kHz |
| Frequency stability | ± 5 Hz |
| Load impedance | 50 Ω (VSWR ≤ 1.6:1) |
| Audio input | +10 dBm at 100% modulation / 600 Ω balanced |
| Frequency response | ± 1 dB, 20–15,000 Hz |
| Harmonic distortion (THD) | < 1% at 95% modulation |
| Intermodulation distortion | < 2% (60 Hz – 7 kHz, 2:1) |
| Carrier shift | < 1% |
| Signal-to-noise ratio | ≥ 62 dB |
| Spurious radiation | ≤ −80 dB |
| Modulation capacity | > 130% positive peak |
| Efficiency | 85% under normal operating conditions |
| Power factor | 0.95 ind |
| Output connector | EIA 1-5/8" |
Power Supply
| Voltage / Phases | Max. current | Consumption |
|---|---|---|
| 220/110 V 3φ | 150 A | 60 kVA |
| 380/220 V 3φ | 84 A | 60 kVA |
(*) At 100% modulation, 50–60 Hz. Tolerance ±5 %, ±10 %.
Physical & Environmental
| Dimensions (W × H × D) | 1354 × 1840 × 872 mm |
| Net weight | 960 kg |
| Operating temperature | 0°C – 50°C |
| Relative humidity | 0 – 95% |
| Operating altitude | up to 3,500 m a.s.l. |
